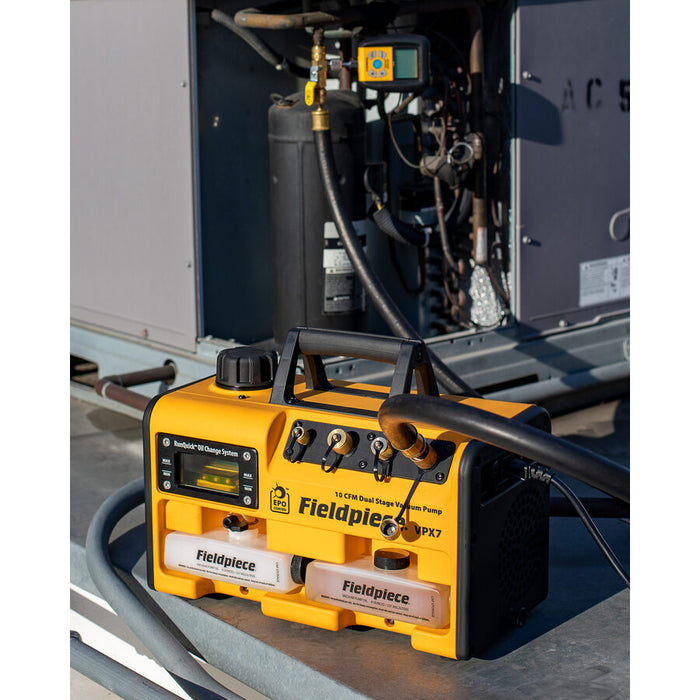

Fieldpiece VPX7INT 10 CFM Two-Stage Vacuum Pump
by Fieldpiece
$1,777.90
The Fieldpiece VPX7INT is a two-stage rotary vane vacuum pump with a brushless DC motor — Fieldpiece's patented lightest-weight pump in its class — built for 240V AC/R evacuation work.
Key Features
- Patented lightest-weight pump in its flow class
- RunQuick oil change system with two pre-filled oil cartridges included
- Backlit oil reservoir with blue LED
- Quarter-turn gas ballast with LED indicator
- Extra-wide, sturdy base; water resistant to direct rain
- A2L class refrigerant compatible (e.g. R32, R1234yf)
Specifications
- Flow rate: 10 CFM [283 l/m]
- Ultimate vacuum: 15 microns
- Motor: 3/4 HP brushless DC, 2500 RPM
- Power: 240VAC @ 50Hz, 1-phase; 6.0A
- Oil capacity: 8oz (237mL)
- Port sizes: one 1/4", two 3/8", one 1/2"
- Weight: 10.9kg
- Dimensions: 201 x 296 x 406mm
- Operating range: -1.1°C to 50°C
What's Included: VPX7INT vacuum pump, two 8oz bottles of RunQuick vacuum pump oil, country-appropriate power plug.
VPX7INT is the international/240V version of the US VPX7 — same pump performance, AU mains configuration.
Model: VPX7INT
