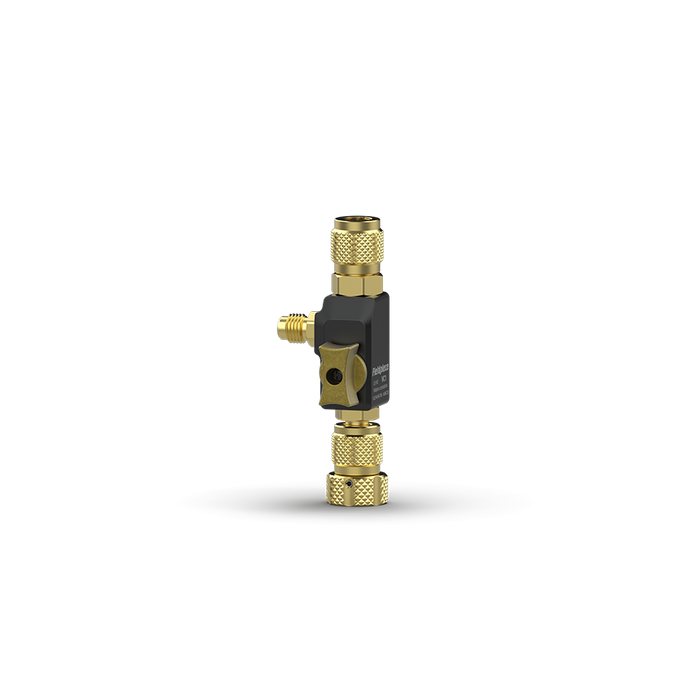

Fieldpiece VC1 1/4″ Valve Core Removal Tool — Vacuum Rated, A2L Compatible
by Fieldpiece
$187.20
The Fieldpiece VC1 is an ultra-compact valve core removal tool built for confined installation areas. Its capture-rod mechanism locks onto the valve core on the first attempt, so there's no fishing around inside the port for a dropped core.
Key Features
- Single-attempt valve core capture with gasket retention — no more lost cores
- Swappable service port fitting: 1/4" standard, with optional 5/16" fitting for mini-split systems
- Magnetic cap keeps the removed valve core secure during service
- Vacuum-rated to 20 microns
- A2L refrigerant compatible
Specifications
- Thread/Fitting size: 1/4" standard (5/16" fitting available separately)
- Vacuum rating: 20 microns
- Refrigerant compatibility: A2L ready
Ideal for removing/installing valve cores under pressure without losing refrigerant charge, and for isolating the core during evacuation. Pairs with Fieldpiece digital manifolds and vacuum pumps.
Model: VC1
