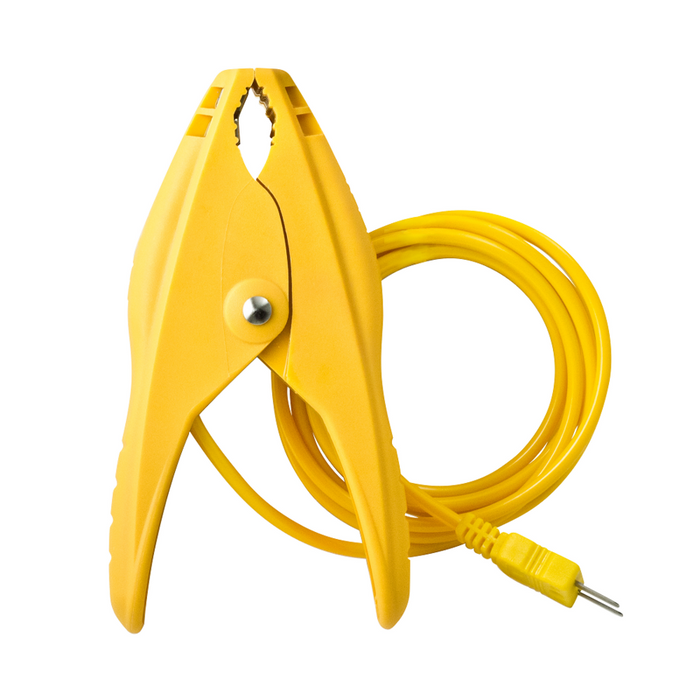

Fieldpiece TC24 Pipe Clamp Thermocouple (K-Type)
by Fieldpiece
$179.00
The Fieldpiece TC24 is a K-type pipe-clamp thermocouple built for fast, accurate pipe surface temperature readings on residential and light commercial cooling systems. Its spring-loaded jaw clamps onto pipework at any angle — including pipes fixed to a wall — freeing up your hands on site.
Key Features
- Clamp-style jaw suits pipes from 3/8" to 1-3/8" (9.5mm–35mm) OD
- Typical stabilisation time under 30 seconds
- Attaches to fixed pipes at any angle for hands-free readings
- Plugs into any meter with a Type-K thermocouple jack
- Meets California Title 24 accuracy requirements after field calibration
Specifications
- Thermocouple type: Type K (nickel chromium/nickel aluminium)
- Jaw opening: 3/8" to 1-3/8" (9.5mm–35mm) OD
- Temperature range: -46°C to 125°C (-50°F to 257°F)
- Accuracy: ±2.2°C standard; ±0.6°C after field calibration
- Lead length: 1.8m (6ft)
- Connector: Type-K male mini plug
Compatibility: Works with any thermometer or meter fitted with a Type-K thermocouple input, including Fieldpiece's HS36/HS33/HS35 meters, SC-series clamp meters, and SMAN manifolds with temperature inputs.
Model: TC24
