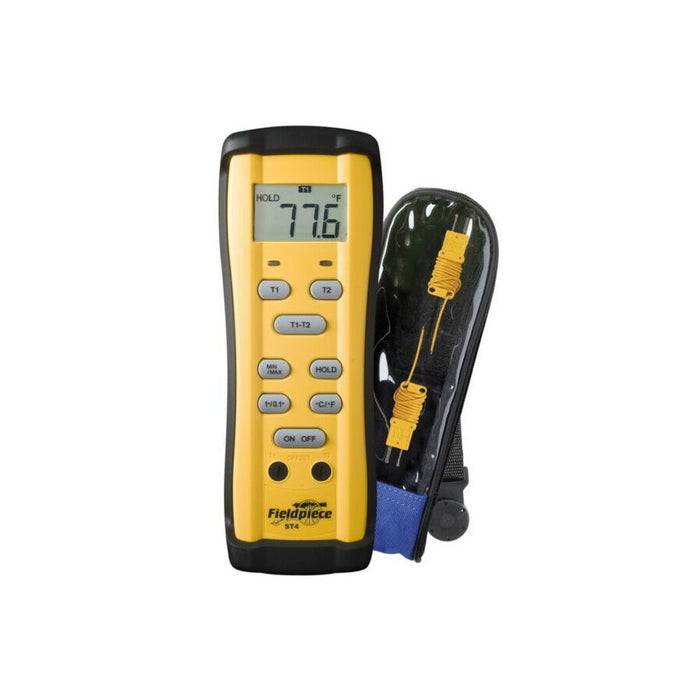

Fieldpiece ST4 Dual Temperature Meter (Type K)
by Fieldpiece
$209.00
The Fieldpiece ST4 is a rugged, dual-input digital thermometer built for HVAC/R service work. It reads two Type K thermocouples simultaneously (T1 and T2) and calculates the differential (T1-T2) instantly — ideal for superheat/subcooling checks, delta-T airflow tests, and coil-to-line comparisons.
Key Features
- Simultaneous T1, T2 and T1-T2 differential display
- Accepts any Type K thermocouple probe
- Two front-face calibration pots for field adjustment
- Separate MIN/MAX and HOLD buttons
- Superior temperature compensation in rapidly changing environments
- Durable rubber boot with clear front carrying case and magnetic hanger
Specifications
- Range: -58°F to 2000°F (-50°C to 1300°C)
- Resolution: 0.1°
- Accuracy: ±4°F at low range; ±(0.3% rdg + 2°F) mid-range; ±(0.5% rdg + 2°F) high range
- Display: 3.5 digit LCD, 2000 count
- Battery: 9V alkaline, ~200 hours typical life
- Operating environment: 32°F to 122°F, <75% RH
What's Included: ST4 meter, two ATB1 Type K wrap-tab bead thermocouples, two velcro tie-wraps, ANC6 clear nylon case with magnetic hanger, 9V battery (installed), operator's manual.
Suits general HVAC/R diagnostic and refrigeration temperature testing where two simultaneous readings are needed.
Model: ST4
