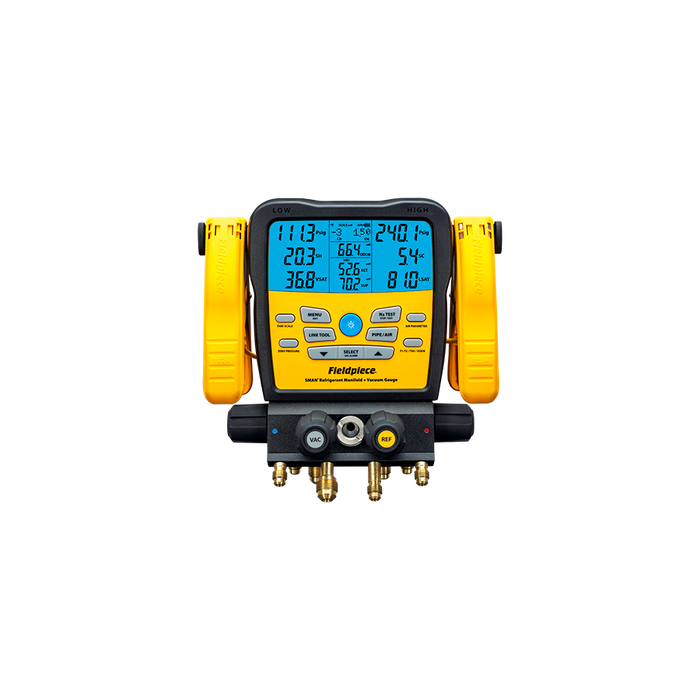

Fieldpiece SM482VINT 4-Valve Digital Manifold with Vacuum Gauge
by Fieldpiece
$1,306.24
The Fieldpiece SM482VINT is a wireless, data-logging 4-valve digital manifold with a built-in micron gauge and system tightness test, giving techs full high/low-side control plus vacuum monitoring in one tool — built for 240V/AU markets and A2L-ready.
Key Features
- 4-valve configuration with built-in micron gauge and adjustable high/low vacuum alarms
- Built-in tightness test to check for leaks after installation or repair
- Internal data logging — up to 9 jobs, up to 7 days (168 continuous hours), USB download, shows available storage before logging
- 2.4GHz wireless — direct ~300m range, no transmitter needed; Job Link System app connectivity up to 100m
- Receives readings from Job Link System psychrometers, pipe clamps and refrigerant scales
- 5" diagonal LCD with adjustable blue backlight
Specifications
- Maximum manifold pressure: 800 psig (5500 kPa)
- Battery: 6 x AA alkaline, ~350 hours typical
- Wireless range: up to ~300m direct line of sight, 2.4GHz
- Weight: ~1.83kg
- Operating environment: 0°C to 50°C, <75% RH
What's Included: SM482VINT manifold, 2 x TC24 wired Type K pipe clamp thermocouples, 1 x ATA1 Type K bead thermocouple with clip, ANC11 padded drawstring case.
Compatible with Fieldpiece Job Link System wireless probes for full digital job documentation. Replacement seal/valve service is covered by the RSMANK8 kit.
Model: SM482VINT
