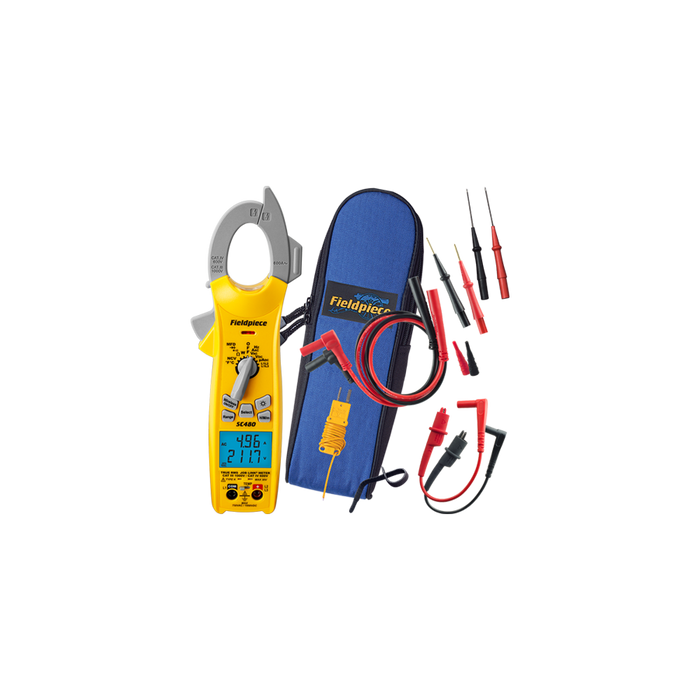

Fieldpiece SC480INT True RMS Power Clamp Meter
by Fieldpiece
$679.00
The Fieldpiece SC480INT is a 600A True RMS clamp meter built for HVAC/R electrical diagnostics, combining a dual 10,000-count display with built-in power (kW) measurement and Bluetooth connectivity to the Fieldpiece Job Link® System App for on-the-spot documentation.
Key Features
- True RMS with Low Pass Filter (LPF) for accurate VFD readings
- Built-in power (kW) measurement for system efficiency checks
- Single-handed 3-phase rotation test using just two leads
- Inrush current mode captures motor starting amps
- Start/run capacitor testing
- Molex tips for accessing tight power connectors
- Magnetic hanger for hands-free use
- Wireless to Job Link® System App via Bluetooth
Specifications
- AC current: up to 600A
- AC voltage: up to 750V; DC voltage: up to 1000V
- Resistance: up to 50MΩ; Capacitance: up to 10mF
- Frequency: 10Hz–400Hz
- Power: up to 450kW
- Safety rating: CAT IV 600V / CAT III 1000V
- Display: 10,000-count dual display, 5-min blue backlight
- Wireless range: up to 305m (1000ft) line of sight
- Battery: 1 x 9V alkaline, ~100 hrs typical
- Weight: ~345g with battery
What's Included: SC480INT clamp meter, deluxe silicone test leads, alligator clip leads, Type K thermocouple, Molex probe tips, velcro strap, 9V battery, padded case, operator's manual.
Compatibility: Bluetooth-enabled, pairs directly with the Fieldpiece Job Link® System App (iOS/Android) for wireless data logging.
Model: SC480INT
