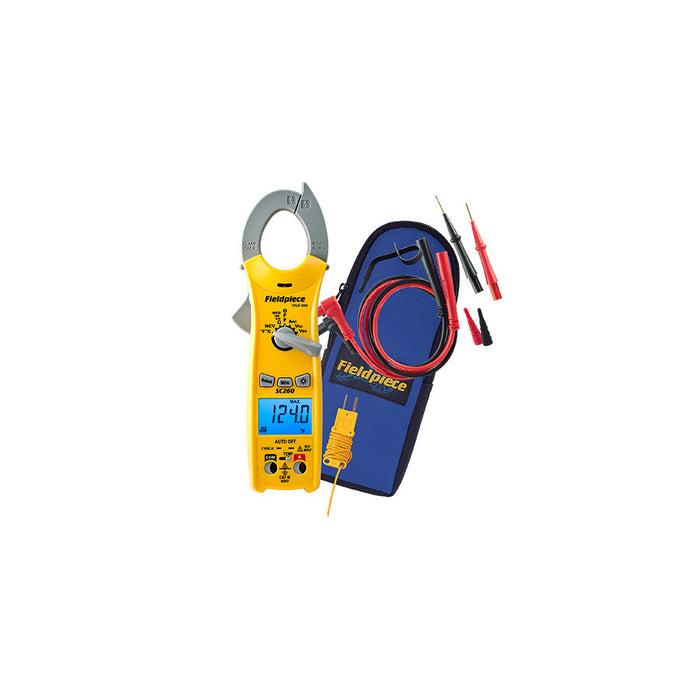

Fieldpiece SC260 Compact TRMS Clamp Meter
by Fieldpiece
$279.00
The Fieldpiece SC260 is a compact, pocket-friendly True RMS clamp meter built for everyday HVAC/R electrical testing. Auto Select mode identifies the measurement automatically, and a swivel magnet lets you mount the meter hands-free while you work.
Key Features
- True RMS for accurate readings on variable frequency drives
- Auto Select mode ā automatically detects what you're measuring
- Non-contact voltage detection
- Temperature readings in Ā°F and Ā°C
- Blue LCD backlight for low-light jobs
- Swivel magnetic hanger for hands-free use
- Max/Min/Hold functions and low-battery indicator
Specifications
- Display: 5000-count LCD
- AC current: up to 400A
- AC/DC voltage: up to 600V (600VAC/DC overload protection)
- Resistance: 50 MĪ©, 0.1 resolution
- Capacitance: yes
- True RMS: yes
- Safety rating: CAT III 600V (test leads)
- Battery: 9V alkaline, approx. 150 hours typical life
- Backlight: blue, 5-minute auto-off
What's Included
SC260 meter, ADLS2 deluxe silicone lead set, ATB1 wrap-tab Type K thermocouple, velcro strap, 9V battery, ANC4 padded case.
Model: SC260
