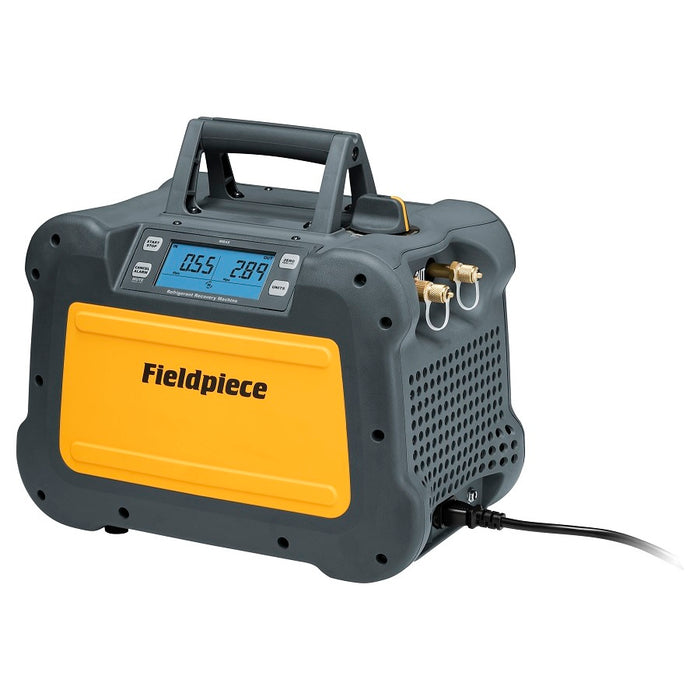

Fieldpiece MR45INT Digital Refrigerant Recovery Machine
by Fieldpiece
$2,299.00
The Fieldpiece MR45INT is a lightweight, variable-speed digital recovery machine built for 220-240V AC/R work. Its smart DC motor automatically accelerates during vapour recovery, and the twin-cylinder oil-less compressor with ceramic-lined cylinders runs quieter and cooler than typical recovery units of its size.
Key Features
- Variable-speed smart DC motor that accelerates during vapour recovery
- Twin cylinder reciprocating, oil-less compressor
- Large backlit LCD with status messages
- Single rubberised control valve; self-purge function
- Three selectable auto-stop levels
- Steps up low incoming voltage — runs down to 190VAC
- A2L class refrigerant compatible; also handles SF6 gas transfer
Specifications
- Motor: 1 HP (0.745kW) DC, ~3000 RPM
- Power: 220-240VAC @ 50Hz, 1-phase; max current draw 7.0A
- Weight: 10kg (15kg shipping)
- Dimensions: 376 x 250 x 344mm
- Final recovery vacuum: 14.9" Hg
- High pressure cutoff: 558 psig (nominal)
- Pressure sensor range: -30" Hg to 600 psig; accuracy ±0.5" Hg (vacuum) or ±(0.6% rdg + 2 psig)
- Refrigerants: R12, R22, R32, R134a, R401A/B/C, R402A/B, R404A, R407A/B/C/D, R408A, R409A, R410A, R412A, R500, R502, R507, R509, R1234yf
What's Included: MR45INT recovery unit, 10 mesh input-port screens, 3 input-port O-rings, operator's manual.
MR45INT is the international/240V-market version of the US MR45 model — same core recovery performance, configured for AU mains supply.
Model: MR45INT
