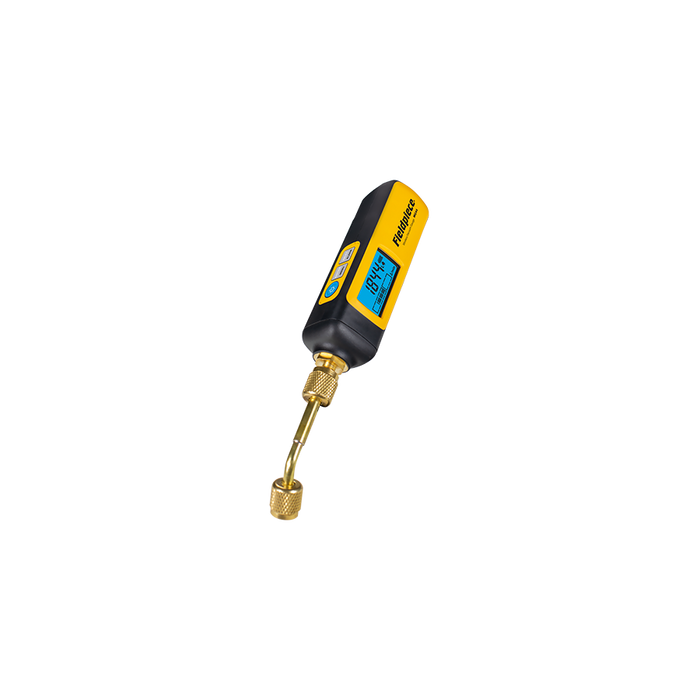

Fieldpiece MG44 Wireless Vacuum Gauge
by Fieldpiece
$497.20
The Fieldpiece MG44 is a wireless digital micron gauge for accurate, real-time evacuation monitoring. Readings can be viewed on the gauge's own LCD, sent wirelessly to the Job Link System app, or displayed directly on a compatible Fieldpiece digital manifold (SM380V/SM480V series).
Key Features
- View readings on-tool, via the Job Link System app, or on a compatible manifold
- 2.4GHz wireless with long line-of-sight range
- Multiple selectable units: microns, Pascals, mBar, mTorr, Torr, mmHg
- IP54 water-resistant housing
- 1/4" SAE male fitting with reversible angled coupler
Specifications
- Measurement range: 50 to 25,000 microns (mTorr)
- Resolution: 1 micron below 2000 microns
- Accuracy: ±(5% rdg + 5 micron) at 25°C, 50–2000 micron range
- Wireless range: up to 300m / 1000ft line of sight, 2.4GHz
- Battery: 2 x AA alkaline, ~40–50 hours typical; auto-off adjustable (default 15 min)
- Overpressure protection: 60 bar (870 psig)
- Weight: 300g
- Operating environment: -10°C to 50°C, <75% RH
What's Included: MG44 gauge, 2 x AA batteries.
Compatible with Fieldpiece SM380V/SM482V-series digital manifolds for direct on-manifold micron display, and with the Job Link System app for remote monitoring.
Model: MG44
