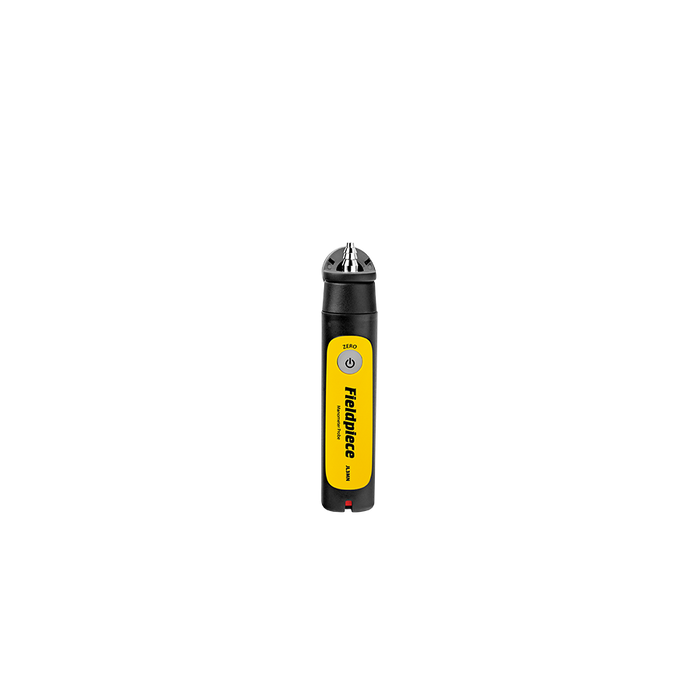

Fieldpiece JL3MN Job Link Wireless Single-Port Manometer
by Fieldpiece
$319.00
The Fieldpiece JL3MN is a single-port wireless manometer for measuring static, gas and draft pressure without hoses tethered to a handheld meter, transmitting readings live to the Fieldpiece Job Link® System App.
Key Features
- Strong magnet for direct placement on test ports
- Short hose design reduces tangling
- Measures static, gas and draft pressure
- Records up to 8 readings simultaneously in the Job Link App
Specifications
- Units: inWC, mmWC, mbar, psi, Pa
- Accuracy: ±0.02inWC (0–2.00inWC); ±1.5%FS (2.00–60.00inWC)
- Maximum overload: 321.08inWC (11.6psi / 80kPa)
- Wireless range: up to 305m (1000ft) line of sight, 2.4GHz
- Battery: 2 x AAA, ~150 hrs typical
- Operating range: -23°C to 50°C; Weight: 137g
What's Included: JL3MN manometer probe, static pressure probe and hose, brass screw fitting with extra hose, slide gas adapter, 2 x AAA batteries.
Compatibility: Fieldpiece Job Link® System App (iOS 7.0+/Android 5.0+, BLE 4.0).
Model: JL3MN
