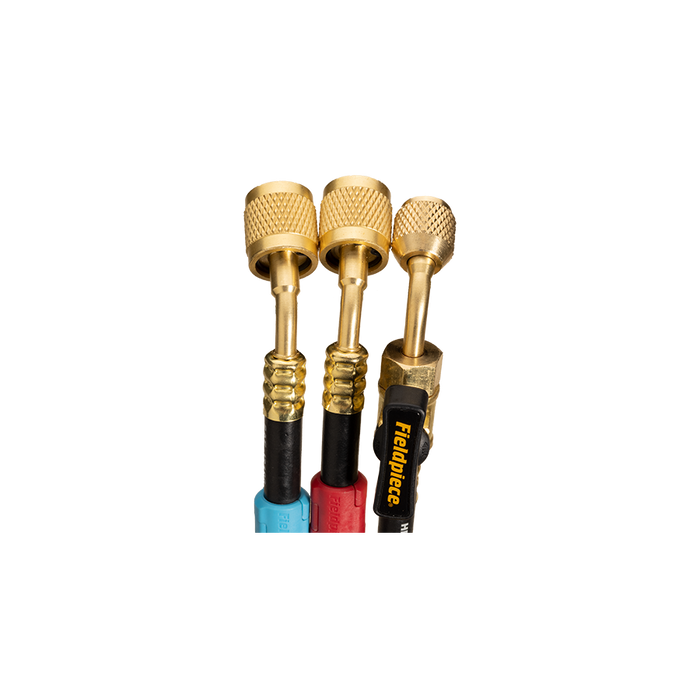

Fieldpiece HR3CM 3-Hose Mini-Split Combination Set — Low Loss & Ball Valve, 5/16″ & 1/4″, 1.5m
by Fieldpiece
$272.43
The Fieldpiece HR3CM pairs low loss and ball valve hoses for mini-split servicing: two 5/16" x 1/4" hoses with angled low loss valves, and one 1/4" x 1/4" hose with a ball valve.
Key Features
- Triple crimp fittings for reliability at high pressure
- Combination valve configuration sized for mini-split and standard ports
- Four-layer construction with neoprene gaskets
- Permeation barrier meeting SAE J2196
- Interchangeable colour identification tags
- A2L refrigerant ready
Specifications
- Hose count: 3x (combination sizing)
- Length: 1.5m (each)
- Fitting sizes: 2x 5/16" x 1/4" (low loss valve), 1x 1/4" x 1/4" (ball valve)
- Colour: Black
- Working pressure: 800 PSI
- Burst pressure: 4000 PSI
What's Included
Two 5/16" x 1/4" low loss valve hoses, one 1/4" x 1/4" ball valve hose, interchangeable colour tags.
Purpose-built for mini-split/VRF systems using 5/16" service ports. Model: HR3CM
