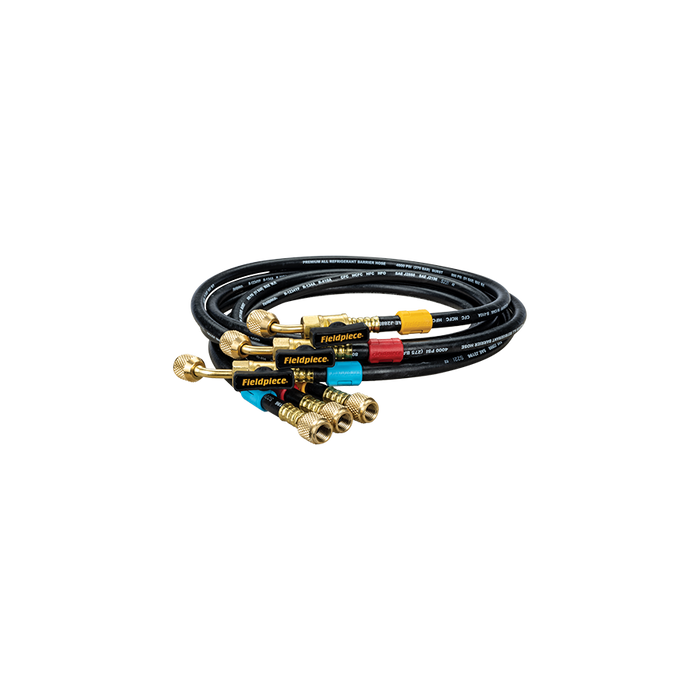

Fieldpiece HR3BM 3-Hose Mini-Split Charging Set — Ball Valves, 5/16″ & 1/4″, 1.5m
by Fieldpiece
$313.94
The Fieldpiece HR3BM is a combination ball-valve hose set built for mini-split servicing: two hoses in 5/16" x 1/4" and one hose in 1/4" x 1/4", all with ball valves fitted for flow shutoff at the hose.
Key Features
- Triple crimp fittings for reliability at high pressure
- Ball valves fitted to all three hoses
- Mixed fitting sizes for standard and mini-split service ports
- Four-layer construction with neoprene gaskets
- Permeation barrier meeting SAE J2196
- Interchangeable colour identification tags
- A2L refrigerant ready
Specifications
- Hose count: 3x (combination sizing)
- Length: 1.5m (each)
- Fitting sizes: 2x 5/16" x 1/4", 1x 1/4" x 1/4"
- Valve type: ball valve (all three)
- Colour: Black
- Working pressure: 800 PSI
- Burst pressure: 4000 PSI
What's Included
Two 5/16" x 1/4" ball valve hoses, one 1/4" x 1/4" ball valve hose, interchangeable colour tags.
Purpose-built for mini-split/VRF systems using 5/16" service ports alongside standard 1/4" equipment. Model: HR3BM
