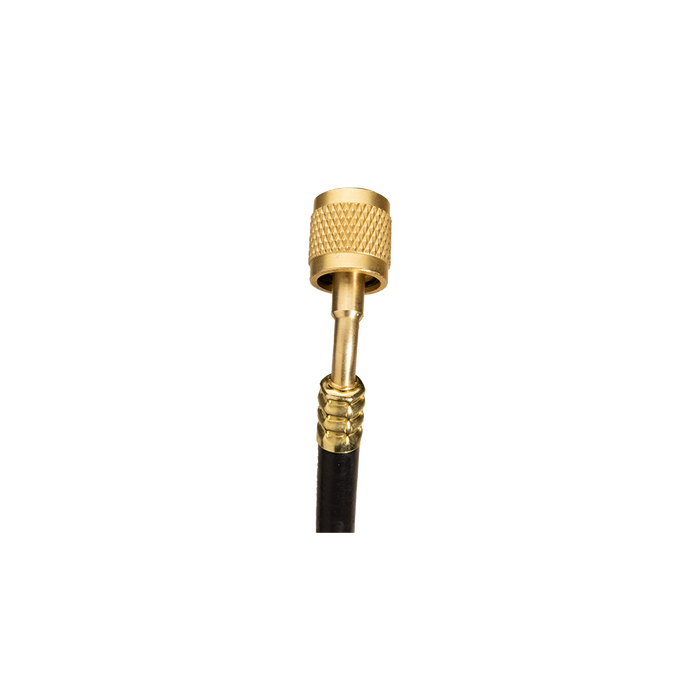

Fieldpiece HR1L Low Loss Valve Charging Hose – 1/4″, 1.5m
by Fieldpiece
$90.23
The Fieldpiece HR1L is a 1.5m black charging hose with a low-loss valve and 1/4" fittings, engineered to minimise refrigerant release when connecting and disconnecting. Its four-layer, triple-crimp build is rated for demanding daily charging, recovery and evacuation work, including A2L refrigerants.
Key Features
- Low loss valve minimises refrigerant escape on connect/disconnect
- Full-ring triple crimp fittings for high-pressure reliability
- Permeation barrier meets SAE J2196 standard
- Four-layer construction with neoprene gaskets, resists heat and lubricants
- A2L refrigerant compatible
- Accepts interchangeable colour ID tags (sold separately)
Specifications
- Length: 1.5m (5ft)
- Fitting size: 1/4" female swivel x 1/4"
- Valve type: Low loss valve
- Working pressure: 800 PSI
- Burst pressure: 4000 PSI
- Vacuum rating: tested to 75 microns
- Colour: Black
Suits standard split system and refrigeration charging, recovery and evacuation. 1-year warranty (excludes consumables).
Model: HR1L
