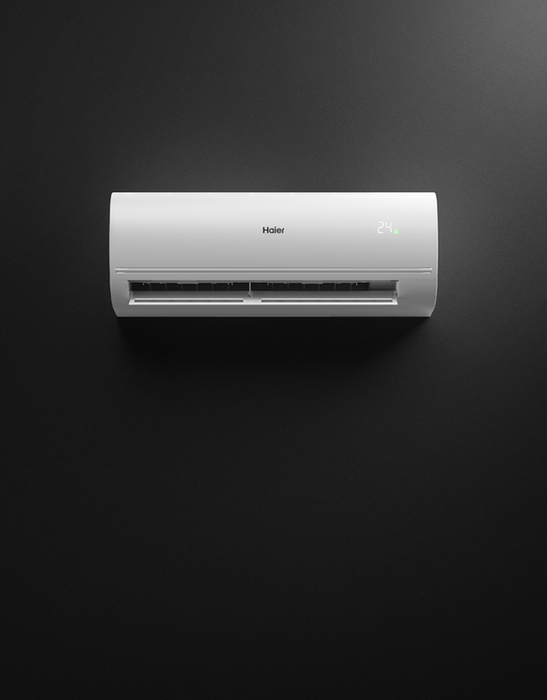

Haier Tempo M Reverse Cycle Split System Air Conditioner (2.5kW–7.0kW) – Wi-Fi
Haier Tempo M Reverse Cycle Split System – Built-in Wi-Fi
The Tempo M range is Haier's current-generation Wi-Fi-enabled wall-mounted reverse cycle split system, available in four capacities from 2.5kW to 7.0kW. Every model includes built-in Wi-Fi with the Haier SmartHQ app (Google Assistant and Amazon Alexa compatible) and uses R32 refrigerant. This is a newer generation than PTEA's existing Haier wall-split ranges (Tempo, Tundra SER, Flexis, Quartz) — no overlap with current stock.
Specifications by capacity
| Capacity (option) | Indoor / Outdoor model | Cooling / Heating capacity | Refrigerant charge | Indoor dimensions / weight | Outdoor dimensions / weight | MCA / Breaker |
|---|---|---|---|---|---|---|
| 2.5kW | AS25TBMHRA / 1U25YAMFRA | 2.5kW / 3.0kW | R32, 0.58kg | 805×200×292mm, 8.5kg | 700×245×544mm, 24.0kg | 5.6A / 7A |
| 3.5kW | AS35TBMHRA / 1U35MAMFRA | 3.5kW / 3.7kW | R32, 0.73kg | 805×200×292mm, 9.0kg | 800×280×550mm, 28.0kg | 7.0A / 9A |
| 5.0kW | AS50TCMHRA / 1U50KAMFRA | 5.0kW / 5.2kW | R32, 1.10kg | 875×217×309mm, 10.0kg | 816×306×642mm, 36.5kg | 9.5A / 11A |
| 7.0kW | AS71TEMHRA / 1U71KAMFRA | 7.0kW / 7.5kW | R32, 1.30kg | 1105×240×345mm, 15.5kg | 816×306×642mm, 37.5kg | 12.5A / 14A |
Technical notes: supplier documentation refers to the 2.5kW model as "AS26TBMHRA-SET" — Haier Australia's official model naming and current AU retailers confirm the indoor unit as AS25TBMHRA (this appears to be a nameplate/generation naming variance, consistent with a similar naming pattern on PTEA's existing Haier Tempo range). The 5.0kW model's nominal cooling capacity is 5.0kW; its 5.2kW heating figure is sometimes quoted as the headline capacity in supplier material — this listing uses cooling capacity (industry standard) for the option name.
Features
- Built-in Wi-Fi with Haier SmartHQ app control from anywhere
- Google Assistant and Amazon Alexa voice control compatible
- R32 refrigerant, inverter compressor
- Single phase 220–240V power supply across the range
- Operating range: cooling to -10°C, heating to -15°C ambient
What's included
- Indoor wall-mounted unit and matching outdoor condenser
- Infrared remote control (YR-HE v2 or equivalent)
- Installation manual and owner's manual
Warranty
Haier Australia provides a 5-year manufacturer's warranty on residential air conditioning products under 25kW cooling capacity (conditions apply). Confirm current warranty terms and any registration requirements with Haier Australia at time of purchase.
Installation considerations
Installation must be carried out by a licensed refrigerant handling technician in accordance with Australian standards. Confirm circuit breaker size, isolator and wall-bracket clearance requirements against the installation manual for the specific model ordered. This listing is for supply of the unit; contact PTEA for an installation quote for your property.
Common questions
Is this single or three phase? All capacities in this range are single phase, 220–240V.
Does it include Wi-Fi? Yes, built-in Wi-Fi is standard on every capacity.
What refrigerant does it use? R32.
What controller does it use? Included infrared remote plus the Haier SmartHQ smartphone app via built-in Wi-Fi.
What indoor/outdoor models make up each set? See the specification table above for the exact indoor and outdoor model for the capacity you select.
What warranty applies? 5-year manufacturer's warranty for residential installations under 25kW, conditions apply.
Brand: Haier | Series: Tempo M | System Type: Wall-mounted split system | Refrigerant: R32 | Power Supply: Single phase 220–240V | Wi-Fi: Built-in | Warranty: 5 years (residential, conditions apply)
