Fieldpiece GS429C 4-Port Analogue Manifold (R290/R600/R600a/R1270)
by Fieldpiece
$376.88

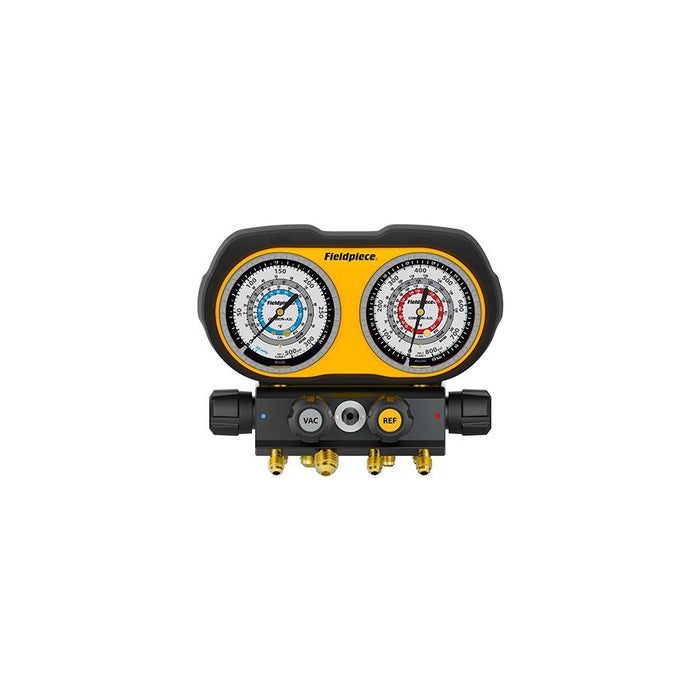

The Fieldpiece GS429C is a rugged 4-port analogue manifold gauge set purpose-built for hydrocarbon refrigerants. It uses the same pressure-tight SMAN manifold block design as Fieldpiece's digital manifolds, giving field technicians a reliable, field-serviceable gauge for diagnostics, recovery, evacuation, pressure testing and charging.
Key Features
- Swappable hose fittings — 1/4" and 5/16" configurations
- Built-in sight glass to view refrigerant flow
- Rugged, rubberised bumper heads for field protection
- Rotating bezel for pressure testing
- Folding hanging hook on the back
- Hard carry case included
Specifications
- Refrigerants: R290, R600, R600a, R1270
- High side range: 0–55 bar (0–800 psi)
- Low side range: -1 to 34 bar (30 inHg to 500 psi)
- Accuracy: ±1% full scale, Class 1A
- Maximum overpressure: 206 bar (3000 psi)
- Ports: three 1/4" SAE male flare + one 3/8" SAE male flare (evacuation)
- Weight: 1.6kg
- Operating temperature: -20°C to 50°C
What's Included
GS429C 4-port analogue manifold and hard carry case.
Compatibility
For use with hydrocarbon refrigerants R290, R600, R600a and R1270 only — not rated for HFC/HFO refrigerant use.
Model: GS429C
