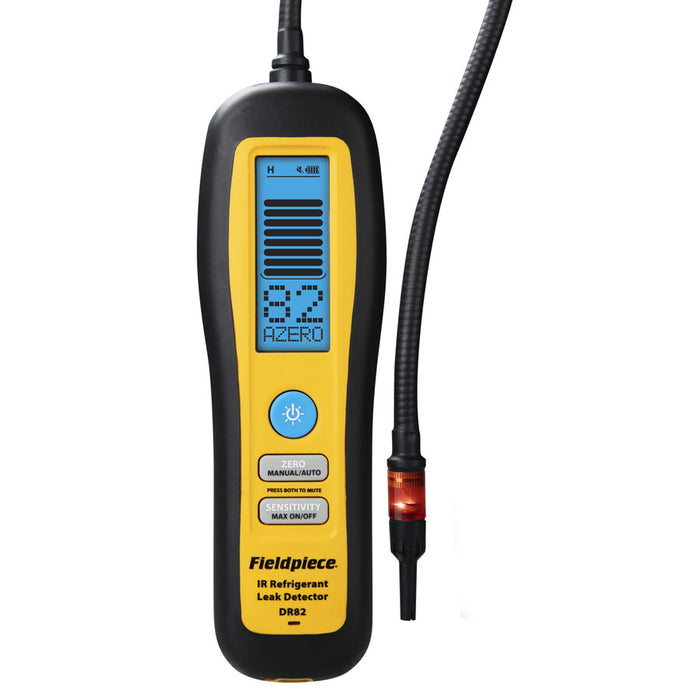

Fieldpiece DR82 Infrared Refrigerant Leak Detector
The Fieldpiece DR82 is an infrared (IR) refrigerant leak detector built for HVAC/R technicians who need fast, reliable leak pinpointing in the field. Its infrared sensor detects leaks smaller than 1 gram per year — around 20 times more sensitive than a soap bubble test — and, unlike heated-diode sensors, IR sensing does not degrade with refrigerant exposure over its rated life. The DR82 combines a bright backlit LCD, a three-way alarm (LED tip, bar graph and beeper) and a rugged IP54-rated body that fits comfortably in one hand.
Key Features
- Infrared (IR) sensor with a typical 10-year sensor lifespan
- Detects HFC, HCFC, CFC and HFO refrigerants, including blends and A2L refrigerants
- Four sensitivity settings: High, Medium, Low and Turbo
- Large backlit LCD with numeric leak-rate readout and bar graph
- Flashing LED tip plus audible beeper for hands-free leak confirmation
- Manual and automatic zeroing
- Not triggered by soap bubbles or oil residue
- IP54 water- and dust-resistant housing
- Compact, sub-1 lb (400 g) design
Specifications
- Detection method: Infrared (IR) sensor
- Sensitivity: better than 0.03 oz/yr (1 g/yr) stationary; 0.1 oz/yr (3 g/yr) in motion
- Response time: less than 1 second typical
- Recovery time: less than 5 seconds typical
- Sensor life: approx. 10 years typical
- Battery: 3.7V lithium-ion, ~2,550mAh (built-in, non-replaceable)
- Battery life: approx. 10 hours (backlight off); recharge time approx. 6 hours
- Charging: USB-C, via included RCA3 wall charger
- Auto power-off: after 10 minutes of inactivity
- Operating range: 0–40°C, <75% RH non-condensing
- Weight: 400g (14 oz)
- Water/dust resistance: IP54
What's Included: DR82 leak detector, 5 x RFT6 filtered tips with gaskets, RCA3 AC wall charger and USB-C cable, blow-moulded carry case, operator's manual.
Compatible accessories: RFT6 replacement filtered tips, RFW82 replacement flex wand, RCA3 wall charger.
Model: DR82
