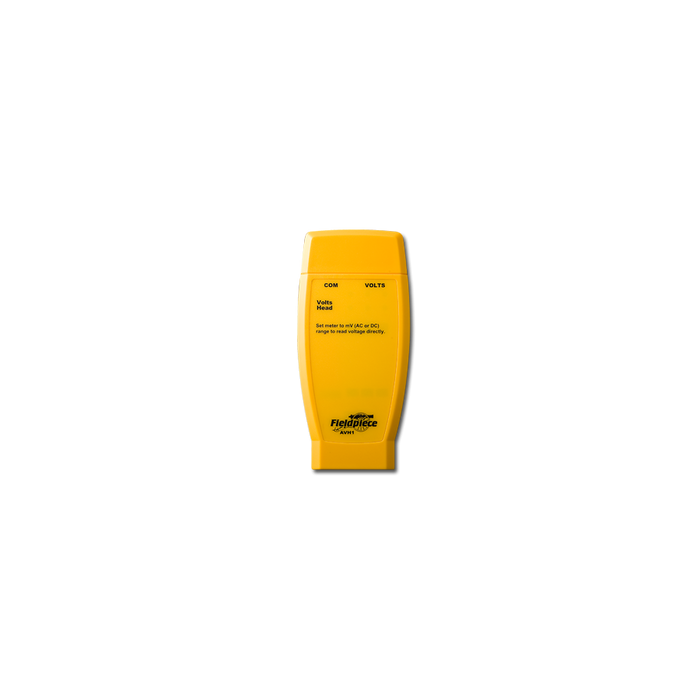

Fieldpiece AVH1 AC & DC Voltage Accessory Head
by Fieldpiece
$43.68
The Fieldpiece AVH1 converts AC or DC voltage into a millivolt signal, ideal for single-phase voltage monitoring and voltage data logging on the DL3. Standard test leads plug directly into the top of the head.
Key Features
- Converts AC or DC voltage to a millivolt signal for direct meter reading
- Well suited to data logging single-phase voltage with the DL3
- Standard test leads plug straight into the head
- High 1MĪ© input impedance
- Powered by an included 9V battery
Specifications
- Maximum voltage: 600V AC or DC
- Accuracy (DC): Ā±(0.5% reading + 1 digit)
- Accuracy (AC): Ā±(1.0% reading + 4 digits)
- Resolution: 0.1V (on meters with 0.1mV resolution)
- Input impedance: 1MĪ©
Compatibility
Slides directly onto the Fieldpiece EHDL1 electronic handle or DL2/DL3 data loggers, and works with other DMMs via the AHDL1 adaptor handle.
Model: AVH1
