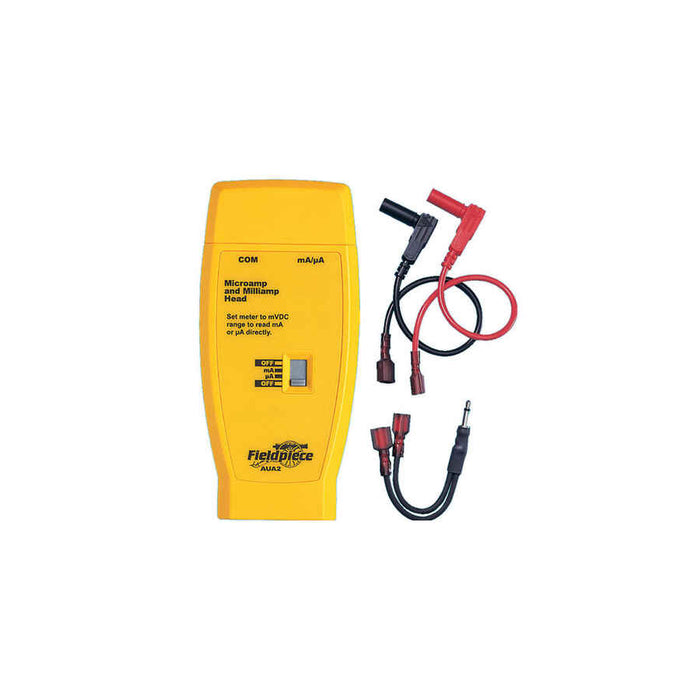

Fieldpiece AUA2 MicroAmp & MilliAmp Accessory Head
by Fieldpiece
$52.64
The Fieldpiece AUA2 converts microamp and milliamp DC/AC signals into a millivolt output for direct reading on a compatible Fieldpiece meter. It's purpose-built for "no heat" fault-finding — testing flame rectifier diodes and heat anticipators without a separate battery-powered tester.
Key Features
- Converts a Fieldpiece stick meter into a one-piece flame rectifier tester
- Includes the AQK3 flame diode adapter kit
- No battery required for flame diode testing
- Quick-connect and mini-plug test lead adapters included
Specifications
- Maximum current: 200mA AC or DC
- Accuracy (DC): ±(1.0% reading + 1 digit)
- Accuracy (AC): ±(1.5% reading + 2 digits)
- Resolution: 0.1 (on meters with 0.1mVDC resolution)
Compatibility
Plugs into Fieldpiece Stick series meters, the EHDL1 electronic handle and Fieldpiece data loggers. Works with other DMMs (mV range) via the AHDL1 adaptor handle.
Model: AUA2
