Daikin Bulkhead FDXS60 6.0kW Standard 1 Phase Ducted Air Conditioner Supply and Install
by daikin
$5,350.00
The Bulkhead range is the ideal choice for air conditioning areas where a discreet installation is preferred.

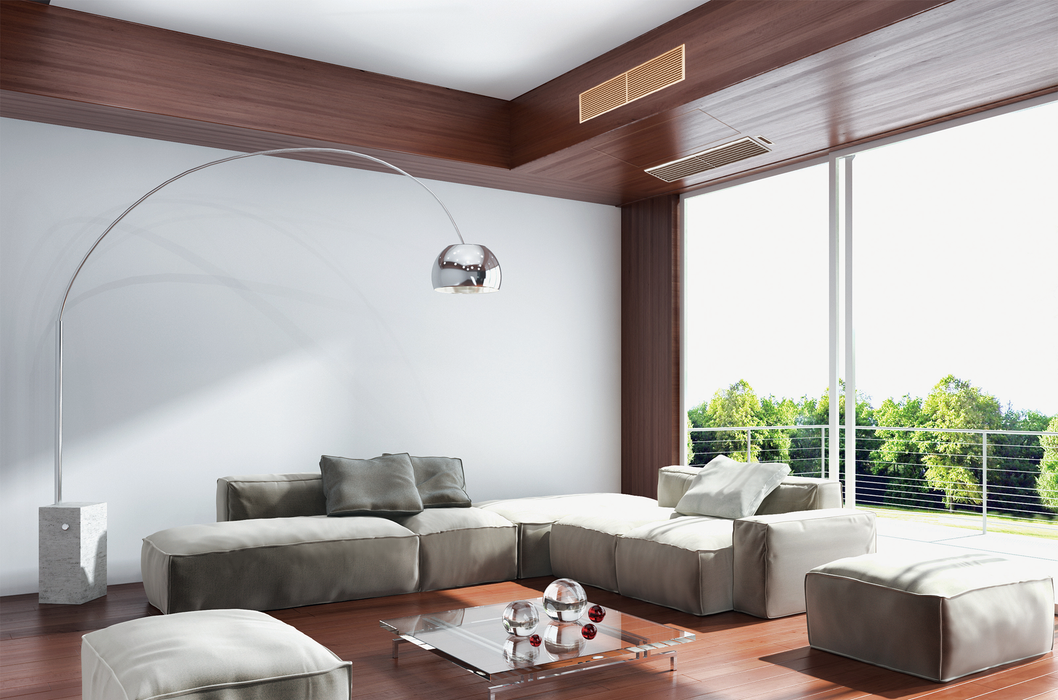

The indoor unit fits flush into the ceiling with only the suction air and discharge grilles visible inside your home and leaving maximum floor and wall space for furniture, decoration and fittings.
The Bulkhead range is truly discreet with whisper quiet operations to ensure limited impact to internal room aesthetics and acoustics.
Key Features :
Ultra Compact
Compact form factor - measuring at 200mm (H) and 620mm (D), makes it suitable for a variety of applications.
Flexible Return Air
Option of a rear or bottom suction return allows for greater installation flexibility.Quiet Operation
Noise levels are truly discrete and whisper quiet at 35dBA (25 Class Model).
Night Set Mode
Temperatures are gently adjusted to prevent excessive cooling/heating for a more pleasant night's sleep.
Standby Power Function
Automatically reduces energy consumption when the system is not in use.
Auto Fan Speed
An optimal fan speed is automatically selected to suit the set temperature for a more efficient operation.
1Saw Edge Fan Blade
Specification:
| INDOOR UNIT | FDXS60LVMA | |
| OUTDOOR UNIT | RXS60LBVMA | |
| Rated Capacity | Cool (kW) | 6 |
| Heat (kW) | 7 | |
| Capacity Range | Cool (kW) | 3.0-6.5 |
| Heat (kW) | 3.0-8.0 | |
| Power Input (Rated) | Cool (kW) | 1.91 |
| Heat (kW) | 2.17 | |
| E.E.R./C.O.P. | Cool/Heat | 3.14/3.23 |
| Air Flow Rate (Rated) | I/S | 267 |
| Indoor Sound Level (@1.5m) | dBA | 38 |
| Piping Length | (m) | 30 |
| Indoor Fan Speeds | 5 Steps, Quiet and Automatic | |
| Dimensions (HxWxD) | Indoor (mm) | 200x1100x620 |
| Outdoor (mm) | 990x940x320 | |
| Weight | Indoor(kg) | 30 |
| Outdoor(kg) | 80 | |
| Power Supply | V/Hz | 1 Phase, 220-240V, 50Hz |
| Compressor Type | Hermetically Sealed Swing Type | |
| Refrigerant | R410A | |
| Pipe Sizes | Liquid (mm) | 9.5 (Flared) |
| Gas (mm) | 15.9 (Flared) | |
| Drain (mm) | IS 20 / OD 26 | |
| Supply Air Opening | mm (HxW, Flange) | 153x1060 |
| Return Air Opening | mm (Oval) | 160x980 |
| Outdoor Operating Range | Cool (°CDB) | 10 to 46 |
| Heat (°CWB) | - 15 to 18 | |
| EPA Sound Power Level | dBA | 68 |
| Outdoor Sound Level (H) @1m | Pressure dBA (C/H) | 52/54 |
