The Bulkhead range is the ideal choice for air conditioning areas where a discreet installation is preferred.

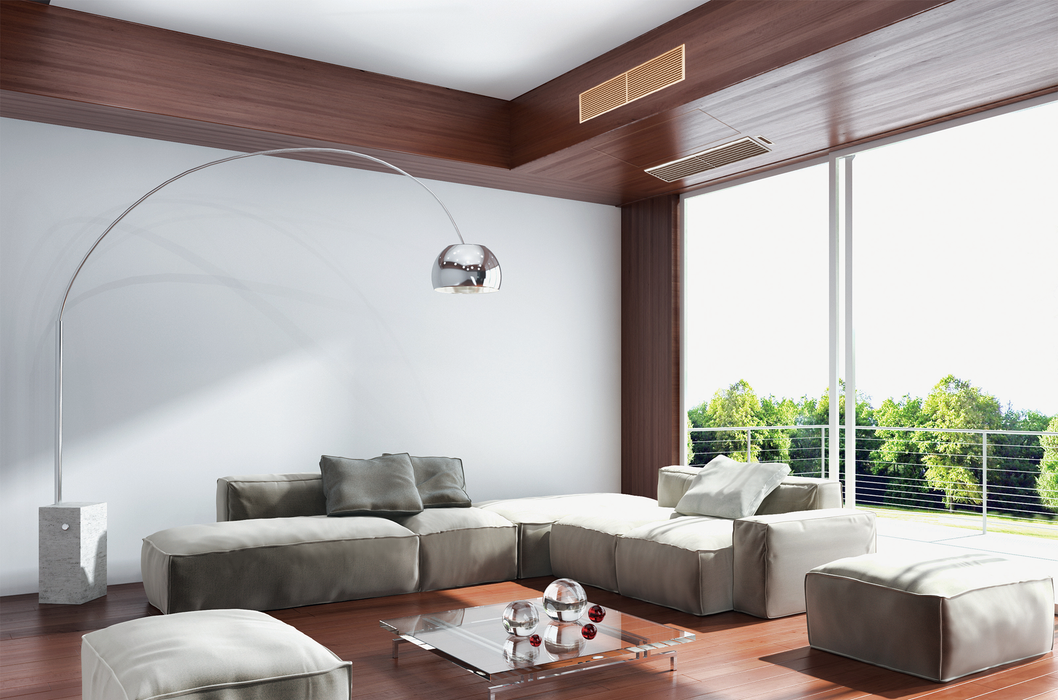

The indoor unit fits flush into the ceiling with only the suction air and discharge grilles visible inside your home and leaving maximum floor and wall space for furniture, decoration and fittings.
The Bulkhead range is truly discreet with whisper quiet operations to ensure limited impact to internal room aesthetics and acoustics.
Key Features :
Ultra Compact
Compact form factor - measuring at 200mm (H) and 620mm (D), makes it suitable for a variety of applications.
Flexible Return Air
Option of a rear or bottom suction return allows for greater installation flexibility.
Quiet Operation
Noise levels are truly discrete and whisper quiet at 35dBA (25 Class Model).
Night Set Mode
Temperatures are gently adjusted to prevent excessive cooling/heating for a more pleasant night's sleep.
Standby Power Function
Automatically reduces energy consumption when the system is not in use.
Auto Fan Speed
An optimal fan speed is automatically selected to suit the set temperature for a more efficient operation.
HEAD SYSTEM Technology
1Saw Edge Fan Blade
The addition of a saw tooth edge at the rear of the blade smooths airflow over the blade surface, reducing turbulence which in turn results in a quieter, more efficient means of delivering comfort to your home.
2Compressor
Daikin’s swing compressors are quieter and more efficient than conventional compressors, thanks to their high pressure dome construction and the usage of high pressure lubrication oil.
3Reluctance DC Motor
The compressor is equipped with a Reluctance DC Motor. These motors utilise the magnetic torque or neodymium magnets in conjunction with reluctance torque, resulting in more energy efficient operation.
4Inverter Technology
The Inverter PCB works like the accelerator of a car, gently increasing or decreasing power. This ensures your desired temperature is reached quicker and steadily maintained without fluctuations.
Specification:
| INDOOR UNIT |
FDXS35LVMA |
| OUTDOOR UNIT |
RXS35LBVMA |
| Rated Capacity |
Cool (kW) |
3.4 |
| Heat (kW) |
4 |
| Capacity Range |
Cool (kW) |
1.4-3.8 |
| Heat (kW) |
1.4-5.0 |
| Power Input (Rated) |
Cool (kW) |
1.03 |
| Heat (kW) |
1.14 |
| E.E.R./C.O.P. |
Cool/Heat |
3.30/3.51 |
| Air Flow Rate (Rated) |
I/S |
200 |
| Indoor Sound Level (@1.5m) |
dBA |
37 |
| Piping Length |
(m) |
20 |
| Indoor Fan Speeds |
|
5 Steps, Quiet and Automatic |
| Dimensions (HxWxD) |
Indoor (mm) |
200x900x620 |
| Outdoor (mm) |
550x765x285 |
| Weight |
Indoor(kg) |
27 |
| Outdoor(kg) |
34 |
| Power Supply |
V/Hz |
1 Phase, 220-240V, 50Hz |
| Compressor Type |
|
Hermetically Sealed Swing Type |
| Refrigerant |
|
R410A |
| Pipe Sizes |
Liquid (mm) |
6.4 (Flared) |
| Gas (mm) |
9.5 (Flared) |
| Drain (mm) |
IS 20 / OD 26 |
| Supply Air Opening |
mm (HxW, Flange) |
153x860 |
| Return Air Opening |
mm (Oval) |
160x780 |
| Outdoor Operating Range |
Cool (°CDB) |
10 to 46 |
| Heat (°CWB) |
- 15 to 18 |
| EPA Sound Power Level |
dBA |
63 |
| Outdoor Sound Level (H) @1m |
Pressure dBA (C/H) |
49/49 |
Item Condition
All products listed on our website are brand new Australian stock.
We DO NOT sell any factory seconds or refurbished products. We DO NOT carry any grey imported products
Product Warranty
All products come with the standard manufacturer's Australian warranty. All warranty claims are subject to the Manufacturer's terms and conditions. Warranty terms and conditions are enclosed with the product.
Making a claim under warranty
You can book a service call by contacting the manufacturer directly.
Warranty contact details are packaged with the product.
Warranty is valid within Australia only.
You will need your invoice when making a claim under warranty.
Delivery Information
We deliver Australia wide using either Australia Post, Fastway Couriers or TNT Express.
Please note our couriers do not deliver to a PO Box address.
Free shipping
We offer free shipping Canberra, Sydney, Melbourne and Brisbane Metro. (Additional costs applies to regional areas)
If unsure of delivery costs please do not hesitate to contact us for confirmation. Thanks
Free shipping only applies to products that display the "FREE Shipping" logo.
Store pickup
Pick up is available at our retail store in Sydney.
Please contact us for our store pick up address.
Mon - Fri : 9am - 4pm
Sat-Sun : 10am - 4pm
If you place your order online, we will contact you once your item is ready for collection.
If you wish to pay and pick up at our store, please contact us to confirm stock availability prior to attending.
(Some items may need to be transferred from our off site warehouse)
Unfortunately at this stage, we do not have any pick up locations outside of Sydney.
Finding the right air conditioner depends on numerous factors including room size, ceiling height, insulation, size of windows, level of sunlight and more. Below is an approximation of required cooling and heating capacities for different room sizes.
Split System Sizing
| Room Size m² |
Capacity - Cooling (C)/Heating (H) |
| 3.0m x 3.0m = 9m² |
2.5KW(C)/3.2KW(H) |
| 5.0m x 5.0m = 25m² |
3.5kw(C)/3.7KW - 4.3KW (H) |
| 5.5m x 5.5m = 30m² |
3.5kw(c)/3.7KW(H) - 5.0KW(C)/6.0KW(H) |
| 6.3m x 6.3m = 40m² |
5.0KW(C)/6.0KW(H) - 6.0KW(C)/7.2KW(H) |
| 6.7m x 6.7m = 45m² |
6.0KW(C)/7.2KW(H) - 7.1KW(C)/8.0KW(H) |
| 7.1m x 7.1m = 50m² |
7.1KW(C)/8.0KW(H) - 8.0KW(C)/9.0KW(H) |
| 7.7m x 7.7m = 55m² |
8.0KW(C)/9.0KW(H) - 9.2KW(C)/10.0KW(H) |
Ducted System Sizing
| Area Size m² |
Capacity - Cooling (C)/Heating (H) |
| 70 m² |
7.1KW(C)/8.0KW(H) - 9.0kw(c)/11.2KW(H) |
| 90m² |
9.0kw(c)/11.2KW(H) -10.0KW(C)/12.1KW(H) |
| 100m² |
10.0KW(C)/12.1KW(H) - 12.5KW(C)/14.0KW(H) |
| 125m² |
12.5KW(C)/14.0KW(H) - 14.0KW(C)/16.0KW(H) |
| 140m² |
14.0KW(C)/16.0KW(H) -15.8KW(C)/18.0KW(H) |
| 160m² |
15.8KW(C)/18.0KW(H) - 18.9KW(C)/22.4KW(H) |
| 180m² |
15.8KW(C)/18.0KW(H) - 18.9KW(C)/22.4KW(H) |
| 200-250m² |
18.9KW(C)/22.4KW(H) - 22.0KW(C)/25.0KW(H) |
DIRECT BANK DEPOSIT
Transfer money direct from your bank account to Palm Tree Enterprise’s bank account.
Select “Bank Transfer” as the payment method when you go to check out. An order confirmation will be sent to your email with our banking details. Quote your order ID as the reference.
*Please note as we try to keep costs low surcharges applies for air conditioning units. To avoid these charges please just Direct Bank deposit. Thanks
All payments must be finalised with 5 working days
INSTALLATION AVAILABLE IN SYDNEY and NSW Regional areas (Additional costs applies for regional areas)
Current installation lead time : 3-5 days
Our installers will bring the unit on the day of installation so you could save on delivery
WHAT IS A BACK TO BACK INSTALLATION ?
This is the most common way to install a split system air conditioner
This is where the indoor unit is mounted inside the home on an external wall and the outdoor unit is installed directly behind it on the ground.
Installation price applies to a Standard Back to Back Installation only. (See illustration below)
This includes 3 meters of refrigerant pipe run ( refer to A in illustration, additional piping required after 3 meters will be charged extra costs)
POWER SOURCE
Units up to 3.5kw : Power can taken from an existing circuit
Units 4.0kw and above : A new dedicated circuit will need to be installed for the air conditioner only.
- Additional costs will be incurred for non standard installations, please contact us for a quote.
Pricing guide for non standard installations:
Piping over 3mtrs - $55 per meter plus GST
Disconnection of an existing air conditioner system - $50 meter plus GST
Free disposal of system if requested.
Roof fitting brackets - $259 meter plus GST
If double brick wall - $50.00 meter plus GST
If on a second storey - $50.00 meter plus GST (2-4.2kw split system)
If on a second storey - $150.00 meter plus GST (5-9.5kw split system)
All installations are carried out by our Qualified licensed technician/contractors and include 5 year workmanship warranty and 5 years manufacturer’s warranty.
Qualified Electrical and Refrigeration Installers
Contractor Licence # 231073C
Refrigeration Installation Licence # L119975
If you are unsure about what type of installation you need on your premises or require more advanced or ducted installations, please contact us/ send us your plans/pictures/short description of where you want to install your air conditioning.
Palm Tree Enterprise Australia is an Australian owned business, we sell most of the leading brands itabn split and ducted air conditioning systems.
We provide supply and installation major brands such as
- Actron
- Carrier
- Daikin
- Fujitsu
- Hitachi
- Mitsubishi Electric
- Mitsubishi Heavy Industries
- Samsung
- Toshiba
ENERGY EFFICIENCY
The Lifestyle Range series are some of the most energy efficient air conditioners Fujitsu have designed. With built-in features such as high efficiency DC componentry, Power Diffusers, and High Density Multi-path Heat Exchangers, these air conditioners can use up to 30% less power than conventional fixed speed air conditioners. With some models reaching a 5 star energy rating, year round comfort can be more affordable for you and your family.
HUMAN SENSOR CONTROL
The Human Sensor feature detects the movement of people in the room to deliver the optimum efficiency and temperature control. When occupants leave the room and do not turn off the air conditioner, the human sensor will switch the air conditioner into energy saving mode after 20 minutes if no movement is detected. When someone re-enters the room, the human sensor will detect movement and return the air conditioner to normal operation.
EASE OF USE
All of the KM & CM range comes with a simple and easy to use controller, giving you control of your climate, right at your fingertips. With features such as Low noise mode, economy operation, and program timers, you can tailor your comfort needs at the touch of a button.
